**Thông Số Kỹ Thuật**
Mẫu: SV☐☐☐☐ iE5-☐
Động cơ áp dụng¹)
- [HP] 1/8 1/4 1/2 1/8 1/4 1/2
- [kW] 0.1 0.2 0.4 0.1 0.2 0.4
Công suất định mức [kVA]²)
- 0.3 0.6 0.95 0.3 0.6 1.4
Dòng điện định mức [A]
- 0.8 1.4 2.5 0.8 1.6 3.0
Tần số đầu ra [Hz]
- 0 ~ 200 [Hz]
Điện áp đầu ra [V]
- 3 pha 200 ~ 230V
Điện áp áp dụng [V]
- 1 pha 200 ~ 230 VAC (±10%)
Tần số đầu vào [Hz]
- 50 ~ 60 [Hz] (±5%)
Dòng điện định mức [A]
- 2.0 3.5 5.5 1.2 2.0 3.5
Chinese Translation:
**规格**
型号: SV☐☐☐☐ iE5-☐
适用电机¹)
- [HP] 1/8 1/4 1/2 1/8 1/4 1/2
- [kW] 0.1 0.2 0.4 0.1 0.2 0.4
额定容量 [kVA]²)
- 0.3 0.6 0.95 0.3 0.6 1.4
额定电流 [A]
- 0.8 1.4 2.5 0.8 1.6 3.0
输出频率 [Hz]
- 0 ~ 200 [Hz]
输出电压 [V]
- 三相 200 ~ 230V
适用电压 [V]
- 单相 200 ~ 230 VAC (±10%)
输入频率 [Hz]
- 50 ~ 60 [Hz] (±5%)
额定电流 [A]
- 2.0 3.5 5.5 1.2 2.0 3.5
English Translation (original text):

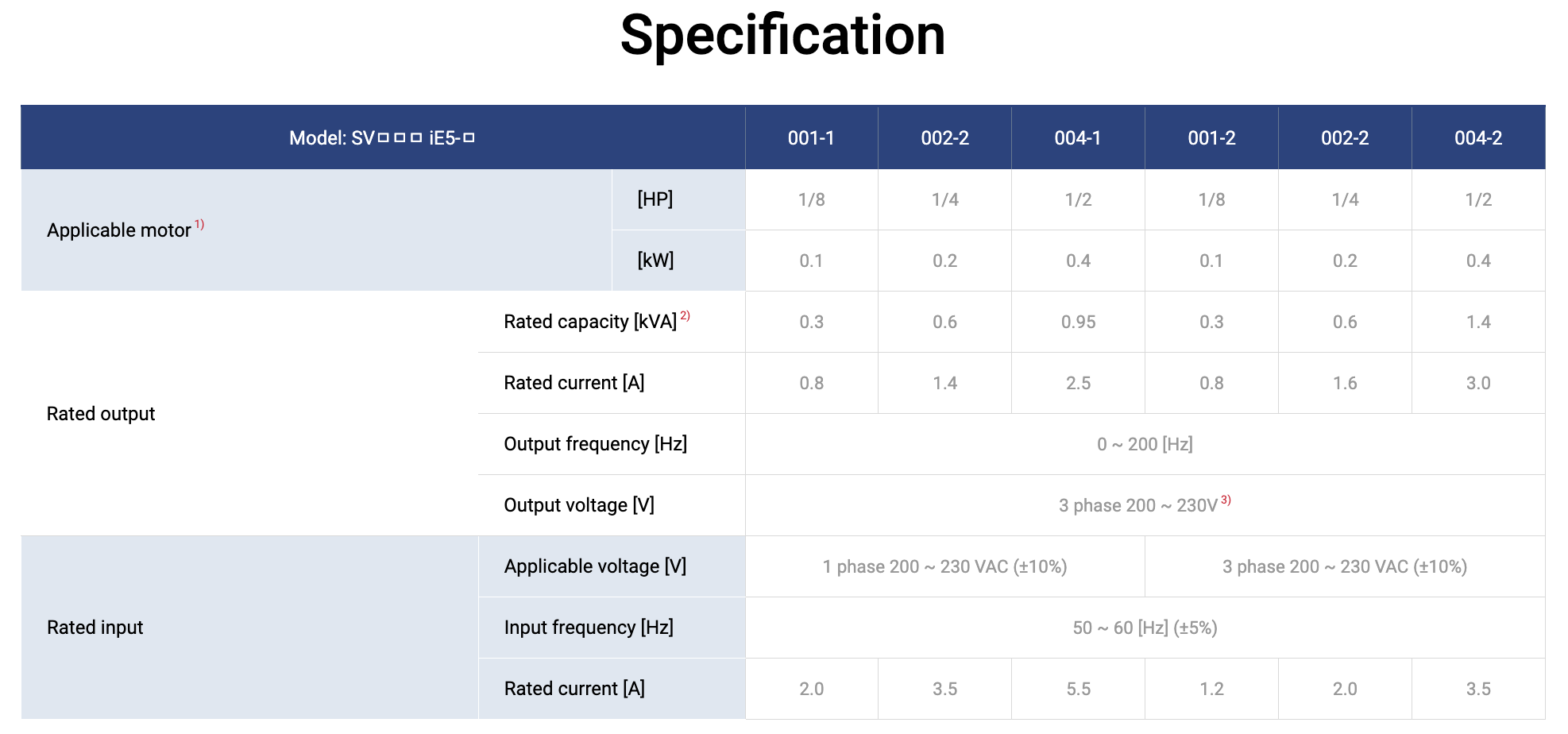

**Specification**
Model: SV☐☐☐☐ iE5-☐
Applicable motor¹)
- [HP] 1/8 1/4 1/2 1/8 1/4 1/2
- [kW] 0.1 0.2 0.4 0.1 0.2 0.4
Rated capacity [kVA]²)
- 0.3 0.6 0.95 0.3 0.6 1.4
Rated current [A]
- 0.8 1.4 2.5 0.8 1.6 3.0
Output frequency [Hz]
- 0 ~ 200 [Hz]
Output voltage [V]
- 3 phase 200 ~ 230V
Applicable voltage [V]
- 1 phase 200 ~ 230 VAC (±10%)
Input frequency [Hz]
- 50 ~ 60 [Hz] (±5%)
Rated current [A]
- 2.0 3.5 5.5 1.2 2.0 3.5
¹) Note: The symbol "☐" is used to represent a placeholder for additional model information that is not displayed in the provided image.
²) The term "kVA" stands for kilovolt-amps, which is a unit of apparent power.
³) The voltage range provided indicates that the device can operate within a certain voltage window, accommodating standard variances in supply voltage.
